DIDS-101 - Diesel Injector Testing

Diesel Injector Testing DIDS-101

Diesel Injection and Return Flow Testing Machine

Accurate, Dynamic and Professional

DaTo unveils a compact and economically viable diesel injection and return flow testing machine. Easy to transport and built for accurate results, DIDS-101 is a strong workshop partner for diesel mechanics and injector servicing centers.

Tests high, medium, low and pre-chamber injection
Supports Bosch, Delphi, Denso and Siemens CRI injection
Keyboard and mouse based input devices
LCD display with back light and electronic control facility
In-built thermal printer for test result reports
Simple operation with detailed user manual and usage interface
Compact design with professional testing performance

Price: Enquiry Based Get Quote WhatsApp

Genuine Products100% Authentic

CRI

CRI Injection SupportBosch, Delphi, Denso, Siemens

Thermal PrinterInstant test results

Pan-India DeliveryFast & Reliable

Workshop ReadyBuilt for injector servicing

High Injection Test

Tests high pressure injection performance

Medium Injection Test

Checks medium flow injection behavior

Low Injection Test

Supports low injection quantity testing

PRE

Pre Injection Test

Tests pre-chamber injection output

CRI

CRI Support

Supports Bosch, Delphi, Denso and Siemens

LCD

Backlit Display

7 inch full color LCD screen

Thermal Printer

Print test reports directly from the machine

Electronic Control

Controlled operation with keyboard and mouse input

Description

Product Overview

Compact diesel injection and return flow testing solution for workshops.
Designed for diesel mechanics and injector servicing centers.
Tests high, medium, low and pre injection points with repeatable accuracy.
Supports major CRI injector brands including Bosch, Delphi, Denso and Siemens.
Keyboard and mouse based input keeps operation familiar and efficient.
Built-in thermal printer helps produce physical reports for each test.
Simple operation backed by a detailed user manual and clear interface.
Professional, accurate and dynamic performance for daily injector work.

Specifications

Power: 220 V 3 phase or 380 V 3 phase
Capacity: 6 KW with heating standard and cooling optional
Pressure Max: 190 MPa
Temperature Fluctuation: +/- 1 deg C
Flow Test Accuracy: 0.1 mm3/Inj.
Fluid Tank Capacity: 7.5 L
Environmental Temperature: -20 to 70 deg C
Net Weight: 72 KG

Display & Body

LCD Screen: 7 inch, 800(RGB) x 480, 16.7 full color
Input Devices: Keyboard and mouse based operation
Printer: In-built thermal printer
Control: Electronic control facility
Machine Size: 860 x 520 x 550 mm
Cooling System: Optional, for test fluid temperature control
Operation: Simple interface with detailed user manual

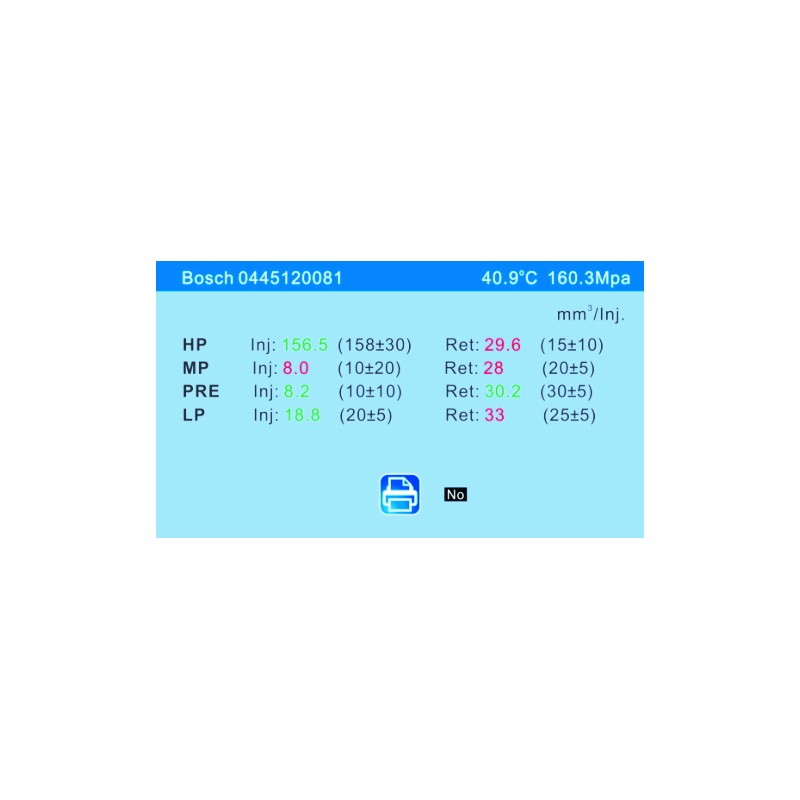

Sample Test Result: BOSCH 0445120081

Test Condition40.9 deg C and 160.3 MPa test reference.

HP InjectionHP inj: 156.5 (158 +/- 30), return: 29.6 (15 +/- 10).

MP InjectionMP inj: 8.0 (10 +/- 20), return: 28 (20 +/- 5).

PRE InjectionPRE inj: 8.2 (10 +/- 10), return: 30.2 (30 +/- 5).

LP InjectionLP inj: 18.8 (20 +/- 5), return: 33 (25 +/- 5).
