DAS701 Super Scanner

DaTo DAS701 Super Scanner

Android Tablet-Based Diagnostic and TPMS Tool

100+ Car Brands

The Super Scanner DAS701 is a versatile Android tablet-based diagnostic tool with an intuitive interface, wide vehicle coverage, TPMS programming, battery inspection and more than 20 essential maintenance functions.

Whole-system diagnostics for over 100 automobile brands
TPMS scanner and programming support for more than 98% of vehicles
CAN FD, DoIP and advanced protocol compatibility
Built-in printer for direct test report printing

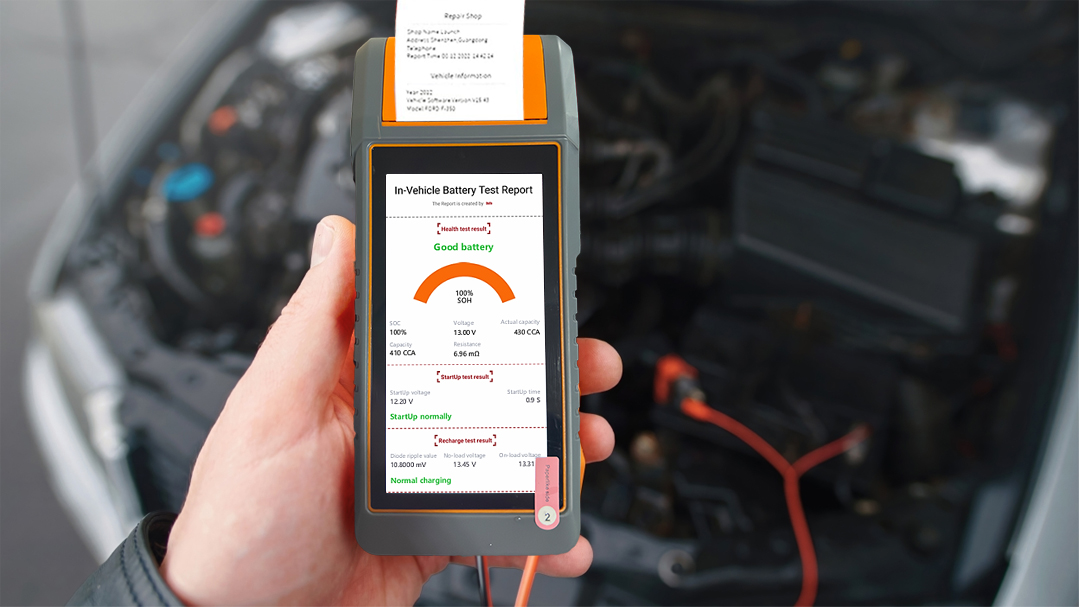

Battery inspection with conductance technology
Tire pressure monitoring and sensor fault diagnosis
64 GB onboard storage for reports and diagnostic data

Price: Enquiry Based Enquire Now WhatsApp

Genuine Products100% Authentic

TPMS Diagnostic SupportSensor Fault Diagnosis

Pan-India DeliveryFast & Reliable

Battery InspectionLead-Acid Battery Testing

Workshop Ready SolutionsBuilt for Professionals

Battery Inspection

Accurate testing for automotive lead-acid batteries

TPMS

Diagnose tire sensor faults and program TPMS sensors

System Detection

Whole-system diagnostics across major vehicle brands

26 Maintenance Functions

Essential service resets and workshop workflows

CAN FD & DoIP

Modern protocol support for faster vehicle communication

Built-in Printer

Print diagnostic test reports directly from the tool

64 GB Storage

Save and review diagnostic data and reports

Module Expansion

Supports additional modules such as an endoscope

Description

Product Overview

Android tablet-based diagnostic tool with simple and intuitive navigation.
Supports over 100 car brands across Europe, America, Asia and China.
Powerful TPMS scanner tool suitable for more than 98% of vehicles equipped with tire pressure systems.
Built-in printer provides quick diagnostic report printing for workshop records.
Battery detection uses conductance technology for reliable lead-acid battery testing.
Polarity reverse connection protection helps prevent damage during battery testing.
Supports diagnosis, battery detection, tire pressure monitoring and professional module expansion.
Compatible with modern protocols including CAN FD and DoIP for fast and accurate data transmission.

Specifications

Model: DBT701
CPU: 4-core 2.0 GHz
System: Android 10
Memory: 4 GB
Storage: 64 GB
Display Size: 5.99 inch
Resolution: 720 x 1440
Battery Capacity: 4500 mAh / 7.6 V
Camera: 8 MP
Wi-Fi: 2.4 GHz

Parameters

Net Weight: 5.3 kg
Gross Weight: 6.0 kg
MEA: 455 x 180 x 390 mm
Working Temperature: 0-50 C
Diagnostic Interface: DB15 Diagnostic Connection
Battery Interface: Battery Clip Connector
USB Interface: USB Type A, USB Type C
Vehicle Coverage: 100+ automobile brands
TPMS Coverage: 98%+ TPMS-equipped vehicles

DAS701 Functions

Electronic Parking Brake ResetService and reset EPB systems after maintenance operations.

Steering Angle CalibrationPerform SAS calibration after steering or alignment work.

DPF RegenerationSupport diesel particulate filter service and regeneration workflows.

Injector CodingCode injectors and complete common powertrain service tasks.

Throttle AdaptationReset and adapt throttle systems after cleaning or replacement.

BMS ResetBattery management reset support for battery replacement service.

Immobilizer Key ProgrammingSupport key and immobilizer service functions for workshop diagnostics.

Suspension and Transmission ResetSupport suspension level calibration and transmission adaptation reset.
