ACMAS302 - AC Service Station

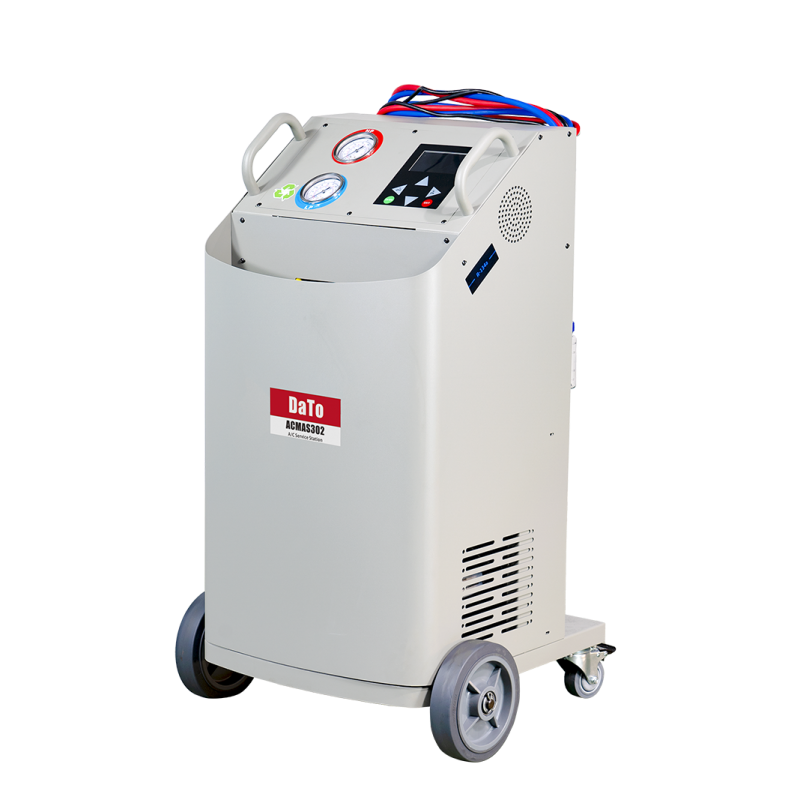

AC Service Station ACMAS302

Entry Model for Automotive A/C Service

Entry Model, Workshop Ready

DaTo ACMAS302 is an entry model A/C service station, suitable for new A/C practitioners and price-sensitive areas. It supports key refrigerant service workflows including tank fill, recovery, vacuum, oil injection, charge and fully automatic operation.

Tank fill, recovery, vacuum, oil injection and charge functions
Fully automatic service mode for daily A/C workflows
Heater band and hand valves free operation
Amply database with free update support
Highly integrated pipeline manifold
Condenser and cooling fan included
Automatic service reminding across 600 operations

Price: Enquiry Based Get Quote WhatsApp

Fully AutomaticCore A/C service workflow

A/C DatabaseFree update support

Thermal PrinterIncluded for reports

600

Service ReminderRegular maintenance tracking

Entry Workshop ModelBuilt for new A/C practitioners

Tank Fill

Supports refrigerant tank filling workflow

Recovery

Refrigerant recovery for service jobs

Vacuum

Vacuum operation for A/C system service

Oil Injection

New oil injection support

Charge

Refrigerant charge up to 2 kg/min max

Fully Automatic

Automatic operation for key service functions

Optional Flush

Flush and compressor oil recovery options

Optional UV Dye

UV dye injection and HFO-1234yf optional support

Description

Product Overview

Entry model suitable for new A/C practitioners and price-sensitive markets.
Main functions include tank fill, recovery, vacuum, oil injection, charge and fully automatic mode.
Optional functions include flush, compressor oil recovery and vacuum leak test.
Optional 120 L/min vacuum pump, UV dye injection and HFO-1234yf support.
Heater band, hand valves free design and integrated pipeline manifold.
Condenser and cooling fan included for stable operation.
Pressurization helps speed up used oil discharge.
Automatic service reminder warns at 480 operations and locks after 600 operations until service is done.

Specifications

Input Power: AC220V +/-10% 50/60Hz or AC110V +/-10% 60Hz
Recovery Rate: Greater than or equal to 95%
Compressor Power: 3/8 HP
Vacuum Pump Capacity: 60 L/min
Gas Cylinder Load Cell: +/-10 g accuracy
Gas Cylinder Capacity: 10 KG
New/Used Oil Bottle: 250 ml / 400 ml capacity
Oil/UV Load Cell Accuracy: +/-5 g

Performance & Display

Thermal Printer: Included
Max Pressure: 20 bar
Charge Speed: 2 kg/min max.
LCD Display: 4.3-inch TFT full color
HP Gauge Range: -1 to 30 bar
LP Gauge Range: -1 to 16 bar
Recovery Speed: 250 g/min average gas state refrigerant recovery
Dimensions: Contact Datronix Autotech for package details

ACMAS302 Optional Upgrades

Flush FunctionOptional flush support for deeper A/C system service.

Compressor Oil RecoveryOptional compressor oil recovery workflow.

Vacuum Leak TestOptional vacuum leak test for system integrity checks.

120 L/min PumpOptional higher-capacity vacuum pump upgrade.

UV Dye InjectionOptional UV dye injection for leak detection workflows.

HFO-1234yfOptional support for HFO-1234yf refrigerant service.

Service ReminderReminds after 480 operations and requires service after 600 operations.

CatalogueEntry model built for practical A/C service station usage.

Need ACMAS302 for your workshop?

Talk to Datronix Autotech for pricing, product guidance and A/C service station support.

Get Quote -> WhatsApp Now
