DAS623 ULTIMATE - EV Scanner

EV SCANNER DaTo DAS623 ULTIMATE EV

New Energy Vehicle Battery Pack Diagnostic Expert

EV Battery Pack Tester

The DAS623 is an advanced intelligent diagnostic tool designed specifically for electric vehicles. It combines battery pack detection, full vehicle diagnostics, multimeter, insulation tester and current clamp support in one professional EV service solution.

Battery SOC, SOH, voltage, current, power and temperature reading
Full-system EV diagnostics with code reading and code clearing
Battery pack fault information and detailed status reporting
Fast charging port detection with Bluetooth detection gun support
DC/DC converter, OBC charger and 48V light hybrid component testing
ADAS calibration and expansion module support
Whole vehicle topology graph for fast fault location

Price: Enquiry Based Enquire Now WhatsApp

Genuine Products100% Authentic

EV Diagnostic SupportBattery & Vehicle Systems

Pan-India DeliveryFast & Reliable

Secure Enquiry ProcessSafe & Confidential

Workshop Ready SolutionsBuilt for Professionals

Battery Pack Detection

Read SOC, SOH, module voltage, temperature and fault details

Vehicle Detection

Full-system EV diagnosis with data stream and active tests

Fast Charging Port

Read battery pack data through fast charging port detection

Maintenance Functions

Support DC/DC, OBC, compressors and 30+ special functions

ADAS Calibration

Compatible with multiple ADAS calibration equipment series

Test Reports

Battery pack, vehicle and ADAS calibration report support

Software Upgrade

Online updates for model software, firmware and apps

Topology Graph

Clearly display vehicle communication networks and faults

Description

Product Overview

Special inspection level EV battery inspection equipment for workshops and service centers.
Combines battery pack detection, detailed battery status and battery fault information.
Supports whole vehicle system diagnostics with code reading, clearing, data flow and action tests.
Automatically calculates total voltage, differential pressure and highest or lowest voltage data.
Supports four battery pack connection methods: OBD, special connector, jumper and fast charging port.
Equipped with professional battery pack connector and aviation plug connector for faster detection.
Dual Wi-Fi design keeps VCI communication independent while the host accesses the internet.
Supports expansion modules including insulation tester, oscilloscope, multimeter, current clamp and video scope.

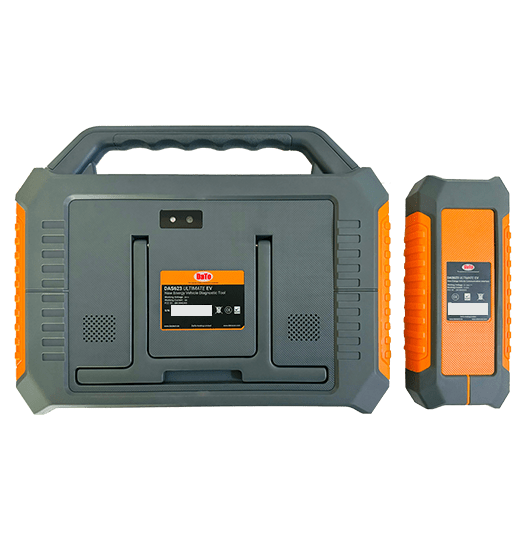

Host

Display Size: 10.1 inches (1920 x 1200)
CPU: 2.0 GHz Octa-core
Memory: 4 GB
Storage: 128 GB
System: Android 11
Wi-Fi: 2.4 GHz / 5 GHz
Camera: Front 8 MP, Rear 13 MP
Battery: 3.8 V / 9360 mAh
Interface: Type A, Type C
Communication: Wi-Fi, BT, USB
Product Size: 318 x 40.5 x 246.5 mm

VCI

Voltage: DC 9-36 V
CPU: Cortex-A7 + Cortex-M7
Memory: 256 MB
Storage: 8 GB
System: Linux
Wi-Fi: 2.4 GHz / 5 GHz
Communication: Wi-Fi, BT, USB
Interface: USB Type B, OBD II-16, DC-IN
Product Size: 197 x 40 x 83 mm

DAS623 Functions

Battery Pack DetectionRead SOC, SOH, voltage, temperature, battery status and fault information for passenger and commercial EV battery packs.

Vehicle DetectionSupport full EV system diagnostics including code reading, code clearing, data flow, action tests and special functions.

Fast Charging Port DetectionConnect the fast charging detection gun through Bluetooth to read battery pack data through the vehicle charging port.

Maintenance FunctionSupport offline testing of DC/DC converters, OBC chargers, air conditioner compressors and 48V light hybrid parts.

ADAS CalibrationSupports ADAS calibration for many European, American, Asian and Chinese models with compatible ADAS equipment.

Test ReportDisplay battery pack test reports, vehicle test reports and ADAS calibration reports for service documentation.

Software UpgradeOnline upgrades for model software, firmware software and application software.

Need DAS623 ULTIMATE EV Scanner for your workshop?

Talk to Datronix Autotech for pricing, product guidance and EV diagnostic support.
